Product center logistics and asset tracker
Product introduction
Logistics and Asset Tracker is a small wireless monitoring terminal based on Bluetooth low power master, with CAT1 module and GNSS, which can monitor the real-time status of goods (geographical location, temperature and humidity, vibration, inclination, etc.).
Product characteristics
Logistics assets positioning
GNSS real-time positioning, motion track recording
Temperature and humidity monitoring
The monitoring threshold was set and the alarm exceeded the threshold. Procedure
Data display
Platform data management, data panel display
Item status monitoring
Unlock detection, tilt detection

Product Series

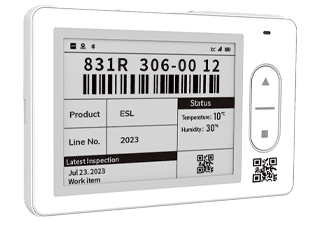

4.2 " Logistics and Asset Tracker
Wireless locator
  • YL-TS04201
    YL-TS04202
    YL-TS04201
    YL-TS04201
    YL-TS04201
    YL-TS04201
    YL-TS04201
    Logistics and Asset Tracker

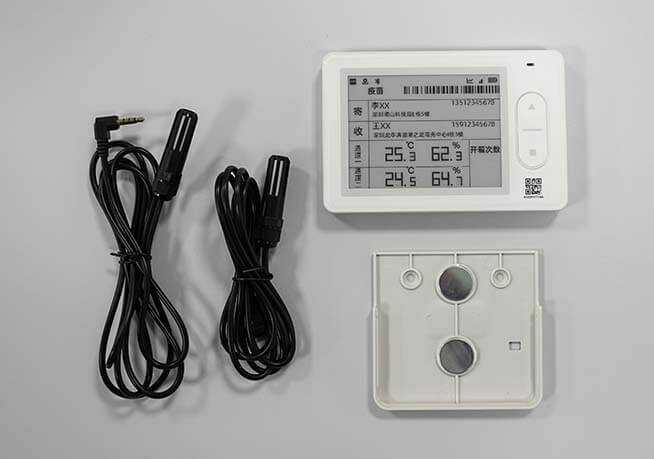

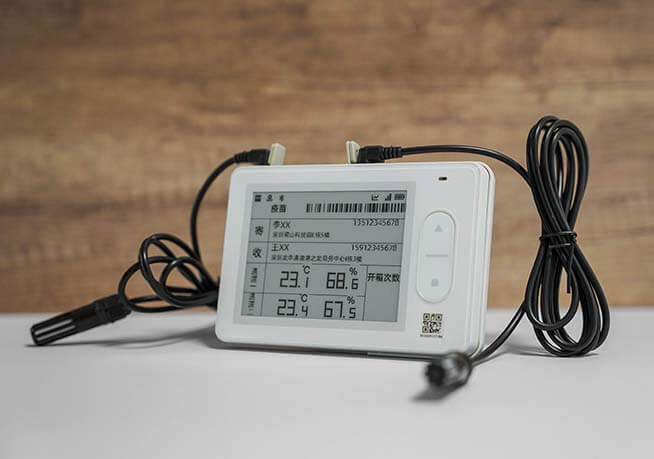

    YL-TS04201 is a small wireless monitoring terminal based on Bluetooth low power control, with CAT1 module and GNSS, which can monitor the real-time status of goods (geographical location, temperature and humidity, vibration, inclination, etc.), and can be widely used in recycling logistics packaging, logistics cage car, cold chain transportation, outdoor important asset tracking management and other scenarios.
    Basic Parameter
    Model
    YL-TS04201
    Shell material
    AC3100
    Shell color
    White
    External dimension
    135*90*15mm
    Weight
    Main Unit
    Probe
    Base
    185.8 g
    32.8 g
    26.9 g
    Screen
    4.2-inch black and white EPD
    Display area
    83.8*62.6mm
    Storage
    64MBit
    Waterproof rating
    IP65
    Firmware upgrade
    Support
    Product characteristics
    More secure data, lower power consumption
    High precision GNSS module, positioning accuracy less than 10 meters
    Switch GNSS/LBS positioning mode
    4G CAT1 communication
    Set the data collection interval freely
    Customize the display content
    Customize the display content
    High capacity replaceable battery
    The SIM card is hot swapped
    IPX5 waterproof

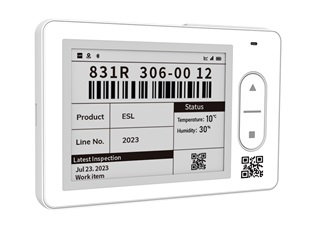

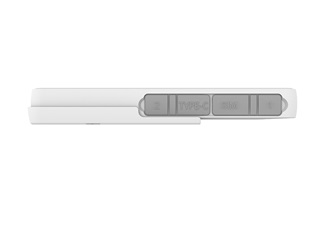

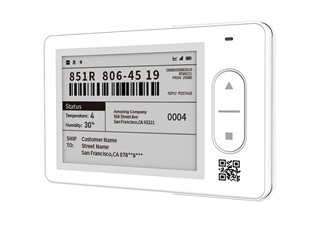

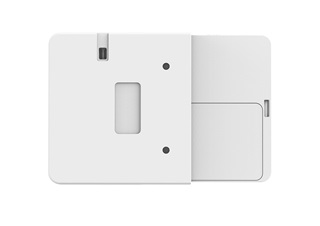

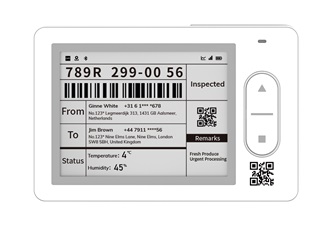

    YL-TS04202
    YL-TS04202
    YL-TS04202
    YL-TS04202
    YL-TS04202
    YL-TS04202
    Logistics and Asset Tracker

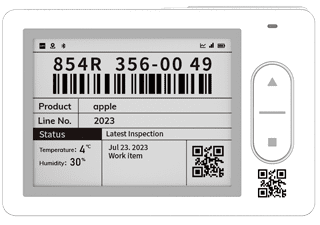

    YL-TS04202 is a compact wireless monitoring terminal built around a low-power Bluetooth main controller, integrating a CAT1 communication module and a GNSS positioning module to enable real-time tracking of cargo status, including geographic location, temperature, humidity, vibration, tilt angle, and lock status.
    Basic Parameter
    Model
    YL-TS04202
    Shell material
    AC3100
    Shell color
    White
    External dimension
    135*90*15mm
    Weight
    Main Unit
    Probe
    Base
    205.6g
    32.8 g
    28.5g
    Screen
    4.2-inch black and white EPD
    Display area
    83.8*62.6mm
    Storage
    64MBit
    Waterproof rating
    IP65
    Firmware upgrade
    Support
    Product characteristics
    More secure data, lower power consumption
    High precision GNSS module, positioning accuracy less than 10 meters
    Switch GNSS/LBS positioning mode
    4G CAT1 communication
    Set the data collection interval freely
    Customize the display content
    Customize the display content
    High capacity replaceable battery
    The SIM card is hot swapped
    IPX5 waterproof
  • YL-TL100
    YL-TL100
    YL-TL100
    YL-TL100
    YL-TL100
    YL-TL100
    Wireless locator

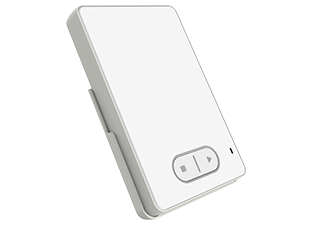

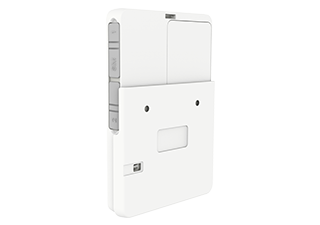

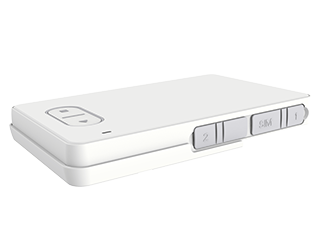

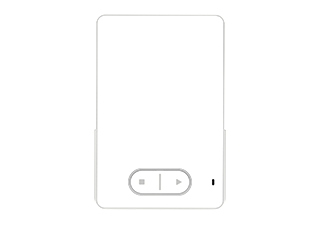

    YL-TL100 is a small wireless monitoring terminal based on Bluetooth low power control, with CAT1 module and GNSS, which can monitor the real-time status of goods (geographical location, temperature and humidity, vibration, inclination, etc.), and can be widely used in recycling logistics packaging, logistics cages, cold chain transportation, outdoor important asset tracking management and other scenarios.
    Basic parameter
    Model number
    YL-TL100
    Housing material
    AC3100
    Case color
    white
    External dimension
    135*90*15mm
    weight
    Host machine
    base
    166.3g
    26.9g
    storage
    64MBit
    Waterproof class
    IP65
    Firmware upgrade
    support
    Product characteristics
    Bluetooth Low power control, more secure data, lower power consumption
    High precision GNSS module, positioning accuracy less than 10 meters
    Switch GNSS/LBS positioning mode
    4G CAT1 communication
    Set the data collection interval freely
    High capacity replaceable battery
    The SIM card is hot swapped
    IPX5 waterproof
SEEMORE intelligent cloud platform

SEEMORE intelligent cloud platform is an Internet of Things cloud platform that integrates cloud services, equipment status management and big data based on intelligent electronic surface single products for security monitoring and management. The smart cloud platform can access a variety of offline application scenarios, provide customized API interfaces to connect to various application systems, and achieve smart upgrades.

Data visualization global system 01

Real-time display of equipment online, offline, early warning, location map, data collection and other global visual interface.

Kanban system 02

Real-time display of asset monitoring status parameters, including: temperature and humidity, latitude and longitude, collection time, record time, and so on.

Mobile application 03

Mobile asset monitoring and management, online and offline service support, quickly understand and master the qualification.
