Product center Gateway
Product introduction
Gateway is a Bluetooth device control center, and is the central controller of the whole system. It connects Bluetooth low-power devices (ESL electronic tags, sensors and Bluetooth positioning beacons, etc.) through Bluetooth protocol, and analyzes and transmits data to the smart cloud platform through MQTT protocol. The image data generated by the system is sent to the corresponding label through the gateway.
Specifications
G1-E Gateway
  • Shell material
    ABS
    Colour
    White
    Product size
    0150x36mm (built-in antenna)
    Weight
    165g
    Distance range
    15 meter radius (open and undisturbed)
    Power supply mode
    5V1A DC power adapter or 802.3af PoEstandard network port power supply
    Interface
    1 10/100M RJ45 network interface, 1 USB interface
    Upgrade
    Support USB upgrade and over the air upgrade
  • g3 gateway
  • g3 gateway

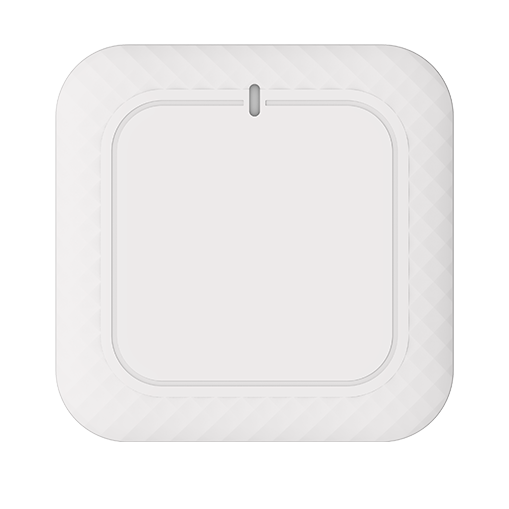

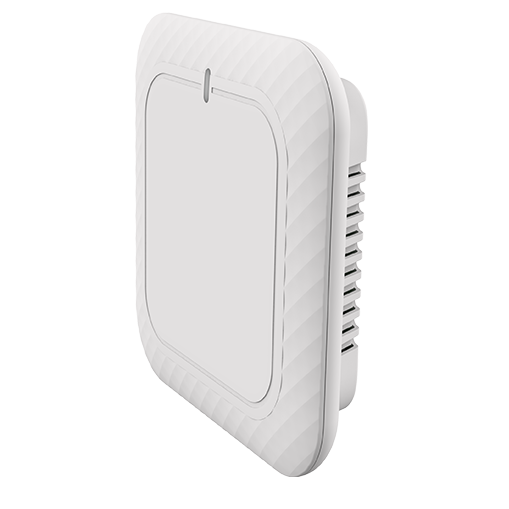

G3 Multi-antenna Gateway
  • Material
    AC3100
    colour
    white
    Dimensions
    220*220*53.5 mm
    weight
    892.8 g(Including Bracket)
    Ports
    POE-IN/WAN *1; POE-OUT/LAN *1; TypeC *1; USB-A *1
    Indicator Lights
    RGB Light *1
    Installation Method
    Ceiling Mount, Wall Mount, Desktop Placement
    Accessories
    Mounting Base, Expansion Screws

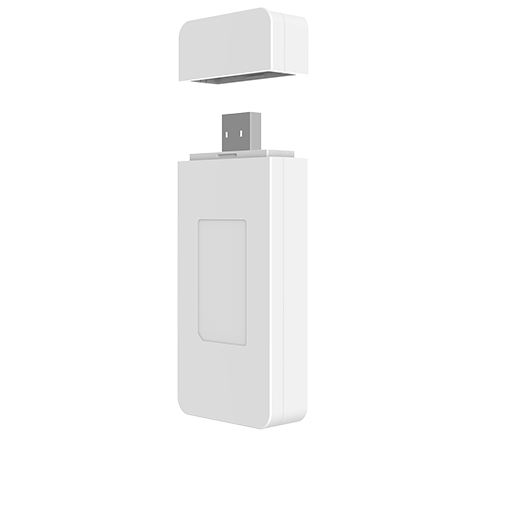

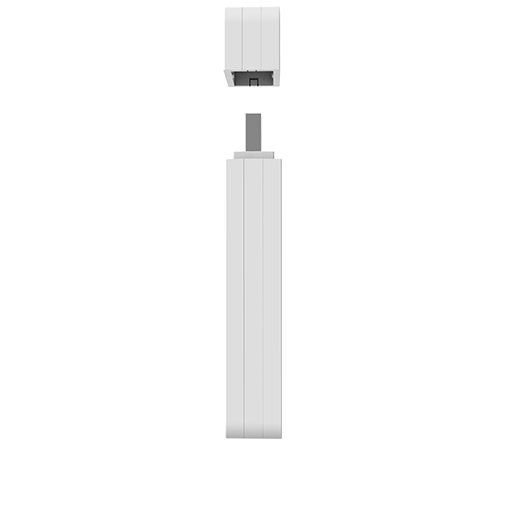

UG1 Mini Gateway
  • Material
    ABS
    Colour
    White
    Dimensions
    92.2 * 38.8* 15.2 mm
    Weight
    52.1 g
    Ports
    USB-A plug
    Power Supply Mode
    DC 5V 1A
    Operating Temperature
    -15~50°C
    Maximum Power Consumption
    4W
Characteristics
Multi-channel Bluetooth module
High transmission speed
Strong stability
Multi-source immunity
Flexible label binding
High network adaptability
USB upgrade and over the air upgrade
Colorful status light ring
